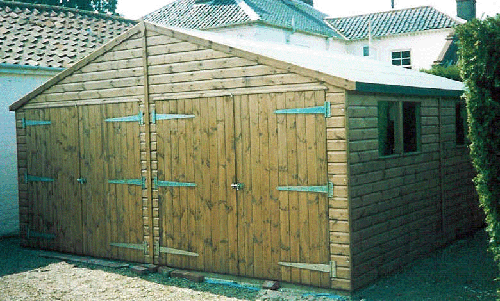

The Double Garage

Our garages and workshops are built to excellent specifications and standards. We wouldn’t want you to put your car, bike or other prized possession into anything else.

All buildings come with a set of double doors as standard. These are sized to the shape of the apex to allow maximum space. Workshops can be fitted with a single door and an opening window or an up and over door if you would prefer.


Call us now on 01953 603398 or email enquiry@orchardtimberbuildings.co.uk for a free quote!

All buildings are finished in a choice of stained colours (Brown, Straw or Red Cedar), plus additional hand painted colours are available at extra cost.

Double Wooden Garage Features & Specification

  • Cladding – Excellent quality 5/8″ shiplap
  • Frame – Framework of 2″ x 2″ (single garages) or 2″ x 3″ (double garages) plained P.S.E timber
  • Floor – 1/2″ or 1″ Tongue and Groove matching boards on 2″ x 2″ floor rails set at 12″ centresRoof – Tongue and Groove matching boards on 2″ x 2″ rails covered in 20kg mineral felt
  • Doors – Single: Tongue and Groove boards with 2″ x 1 1/2″ Bracing. Double:Tongue and Groove boards with 2″ x 3 ” Bracing
  • Windows – Two 4′ x 2′ windows fitted internally for security

Standard Size Options

17′ x 17′ 17′ (5.18m) 17′ (5.18m) 6′ 6″ (1.98m) custom custom
18′ x 18′ 18′ (5.49m) 18′ (5.49m) 6′ 6″ (1.98m) custom custom
20′ x 20′ 20′ (6.10m) 20′ (6.10m) 6′ 6″ (1.98m) custom custom



Size

17' x 17', 18' x 18', 20' x 20'
