The Extension Shed

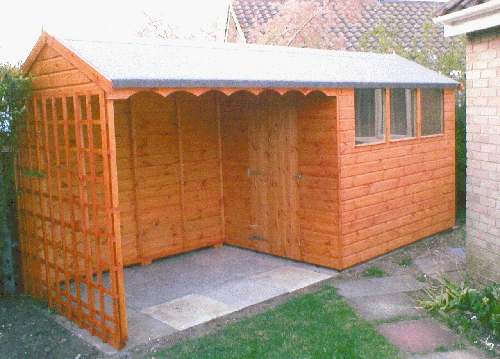

This building is based on a typical apex design with an extended canopy with trellis end. This is a very popular design for those that would love a summer house, but need a shed – a summerhouse shed if you will. A lovely place to sit on those sunny (or rainy) days and provides excellent short term shelter for garden furniture.


Call us now on 01953 603398 or email enquiry@orchardtimberbuildings.co.uk for a free quote!

Category:

All buildings are finished in a choice of stained colours (Brown, Straw or Red Cedar), plus additional hand painted colours are available at extra cost.

Apex Shed Specification

  • Cladding – Choose from excellent quality 5/8″ shiplap or Tongue and Groove boarding
  • Frame – Framework of 2″ x 2″ and 1 1/2″ x 2″ plained timber secured with 4″ nails
  • Floor – Tongue and Groove matching boards on 1 1/2″ x 2″ floor rails set at 12″ centres
  • Roof – Tongue and Groove matching boards on 1 1/2″ x 2″ rails covered in 20kg mineral felt
  • Doors – Mortice and tenon joinery made doors, with brass face mortice lock
  • >Windows – Glass panes (unlike many cheaper, plastic window alternatives) fitted and beaded from the inside, making the building more secure
  • Iron Mongery- 12″ tee hinges, saftey hasp and staple and turn buttons

Standard Size Options

Size Width Depth Eaves Height Door Width Door Height
16′ x 6′ 16′ (4.88m) 6′ (1.83m) 6′ (1.83m) 2′ 6″ 5′ 10″
16′ x 8′ 16′ (4.88m) 8′ (2.44m) 6′ (1.83m) 2′ 6″ 5′ 10″
Size

10' x 10', 10' x 11', 10' x 12', 10' x 13', 10' x 6', 10' x 7', 10' x 8', 10' x 9', 12' x 10', 12' x 8', 15' x 8', 16' x 10', 16' x 12', 16' x 8', 16' x 9', 17' x 17', 18' x 10', 18' x 12', 18' x 18', 18' x 9', 20' x 10', 20' x 12', 20' x 20', 20' x 9', 4' x 3', 4' x 4', 5' x 5', 6' 6" x 6' 6", 6' x 4', 6' x 6', 7' x 5', 7' x 7', 8' x 10', 8' x 11', 8' x 12', 8' x 6', 8' x 7', 8' x 8', 8' x 9', 9' x 7', 9' x 9'
