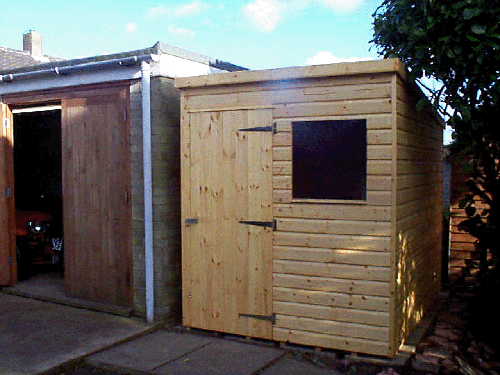

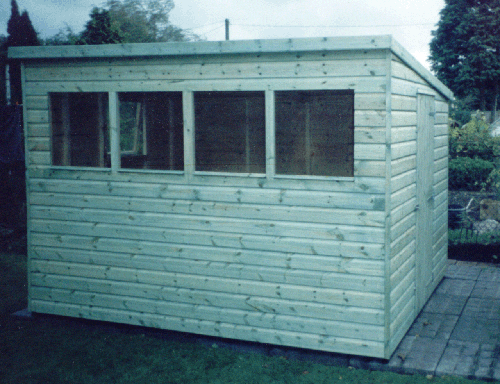

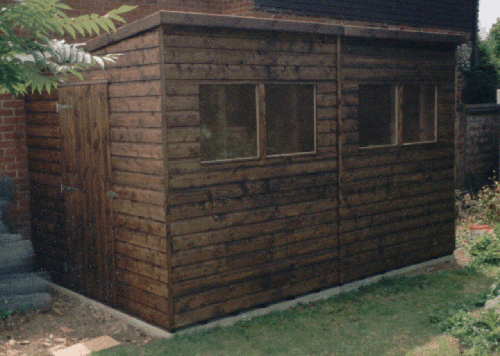

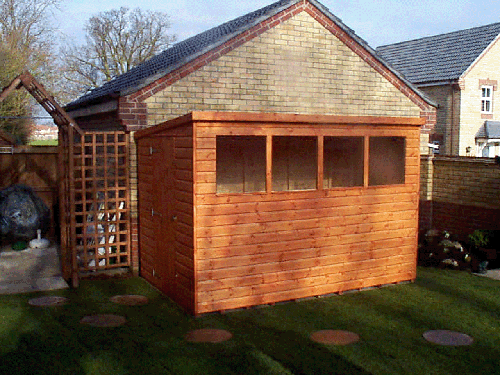

The Pent

The Pent garden shed has a single sloping roof, which can be sloped to the side of your choice. It has full glass panels as standard, though both windows and doors can be altered in position to suit the individual client. The Pent shed is on show at our site in Wymondham, Norfolk.


Call us now on 01953 603398 or email enquiry@orchardtimberbuildings.co.uk for a free quote!

Category:

All buildings are finished in a choice of stained colours (Brown, Straw or Red Cedar), plus additional hand painted colours are available at extra cost.

Pent Shed Specification

  • Cladding – Choose from excellent quality 5/8″ shiplap or Tongue and Groove boarding
  • Frame – Framework of 2″ x 2″ and 1 1/2″ x 2″ plained timber secured with 4″ nails
  • Floor – Tongue and Groove matching boards on 1 1/2″ x 2″ floor rails set at 12″ centres
  • Roof – Tongue and Groove matching boards on 1 1/2″ x 2″ rails covered in 20kg mineral felt
  • Doors – Mortice and tenon joinery made doors, with brass face mortice lock
  • >Windows – Glass panes (unlike many cheaper, plastic window alternatives) fitted and beaded from the inside, making the building more secure
  • Iron Mongery- 12″ tee hinges, saftey hasp and staple and turn buttons

Standard Size Options

Size Width Depth Eaves Height Door Width Door Height
6′ x 4′ 6′ (1.83m) 4′ (1.22m) 6′ (1.83m) 2′ 6″ 5′ 10″
7′ x 5′ 7′ (2.13m) 5′ (1.52m) 6′ (1.83m) 2′ 6″ 5′ 10″
8′ x 6′ 8′ (2.44m) 6′ (1.83m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 6′ 10′ (3.05m) 6′ (1.83m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 7′ 10′ (3.05m) 7′ (2.13m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 8′ 10′ (3.05m) 8′ (2.44m) 6′ (1.83m) 2′ 6″ 5′ 10″
10′ x 10′ 10′ (3.05m) 10′ (3.05m) 6′ (1.83m) 2′ 6″ 5′ 10″
12′ x 8′ 12′ (3.66m) 8′ (2.44m) 6′ (1.83m) 2′ 6″ 5′ 10″
12′ x 10′ 12′ (3.66m) 10′ (3.05m) 6′ (1.83m) 2′ 6″ 5′ 10″
Size

10' x 10', 10' x 6', 10' x 7', 10' x 8', 12' x 10', 12' x 8', 6' x 4', 7' x 5', 8' x 6'
